Revival 560 X-Rider


$0.00
* Sail Away

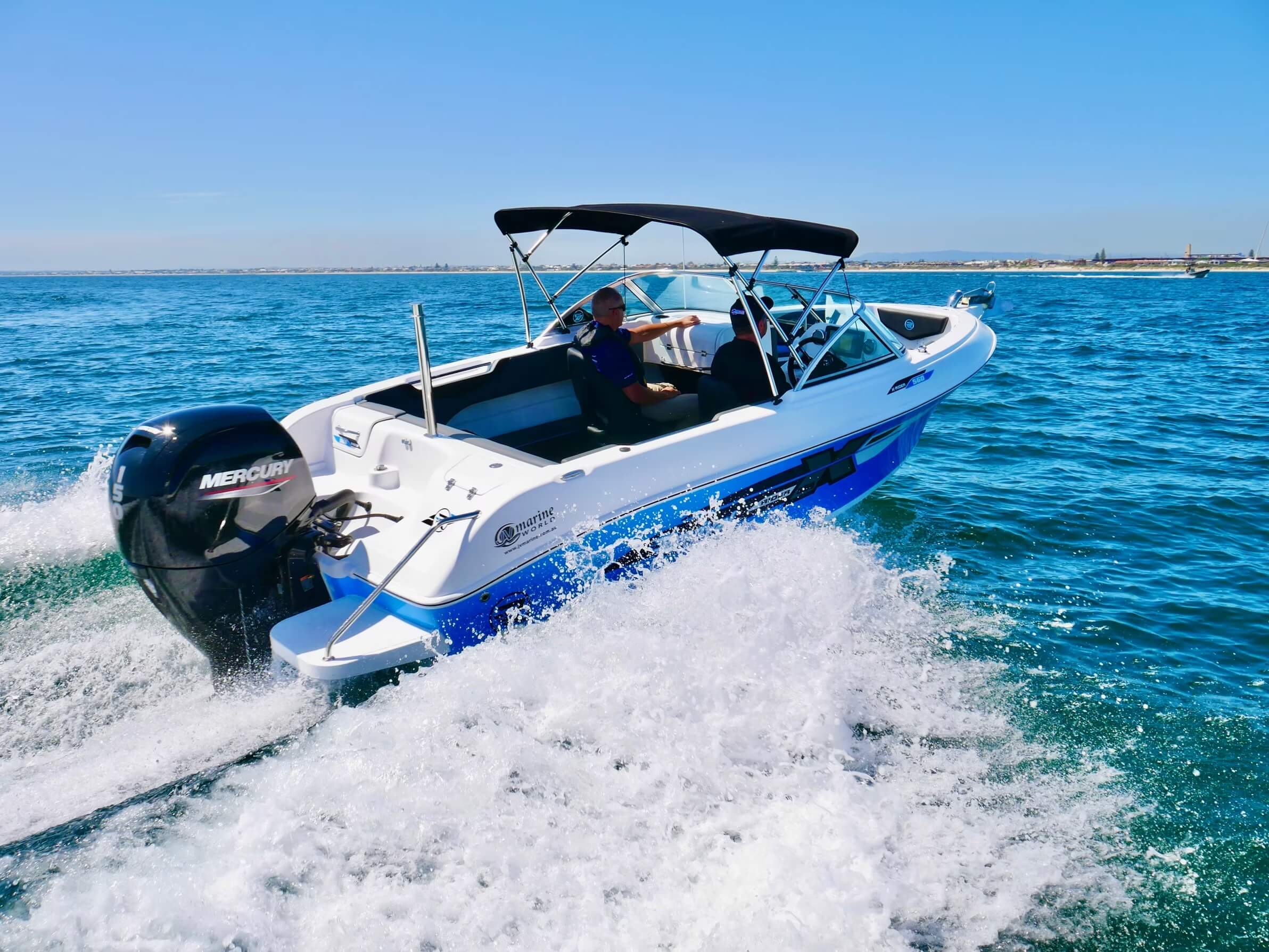

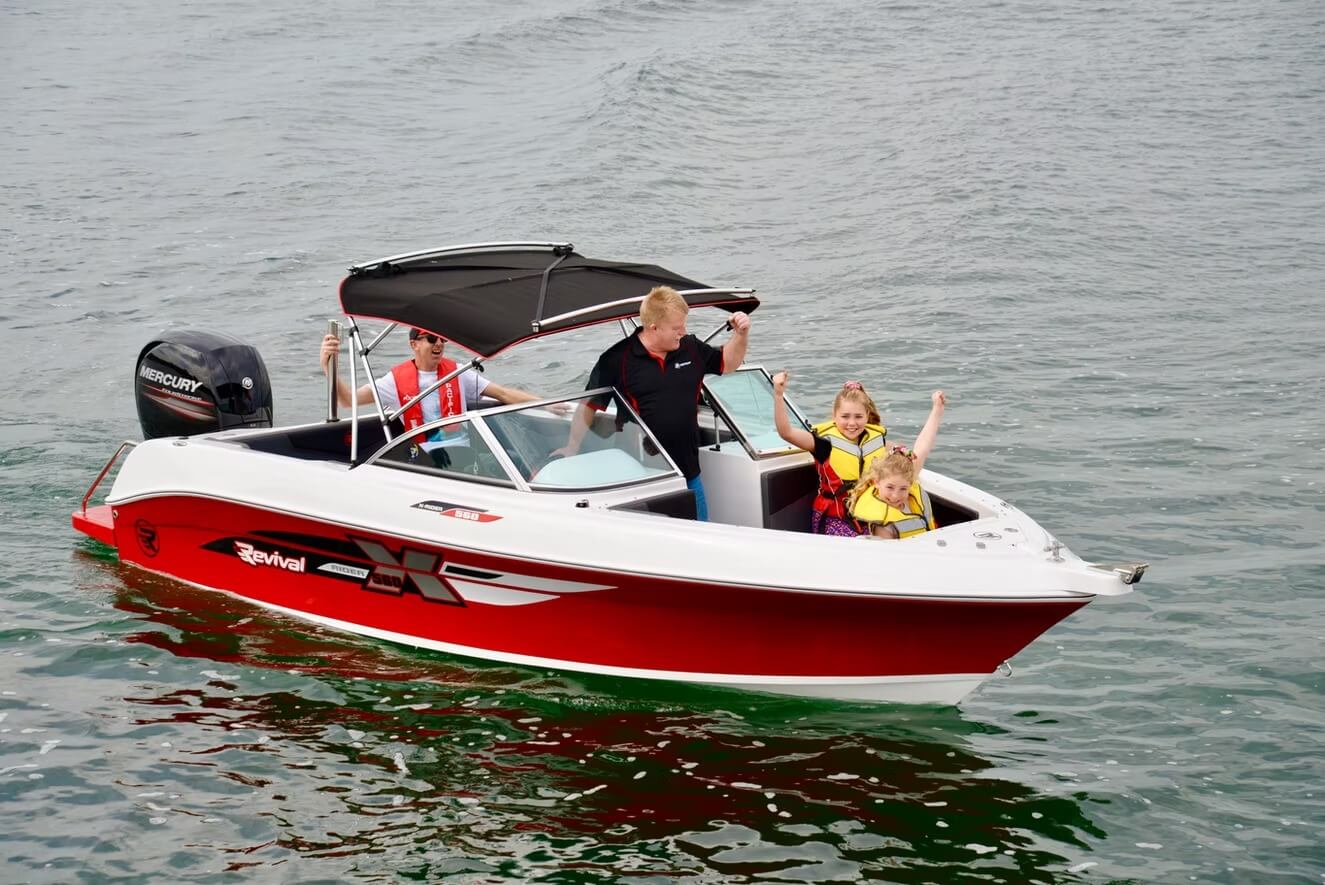

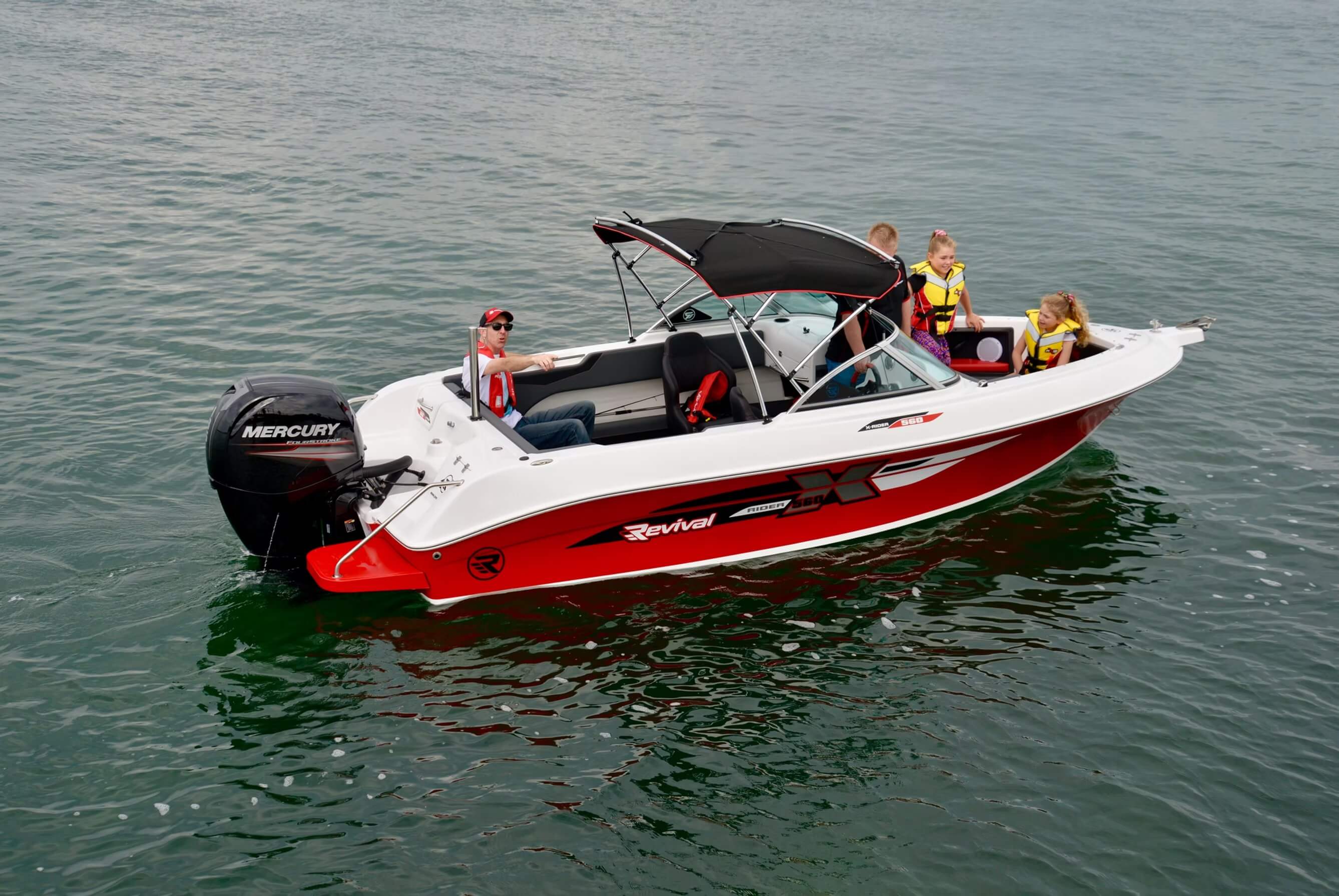

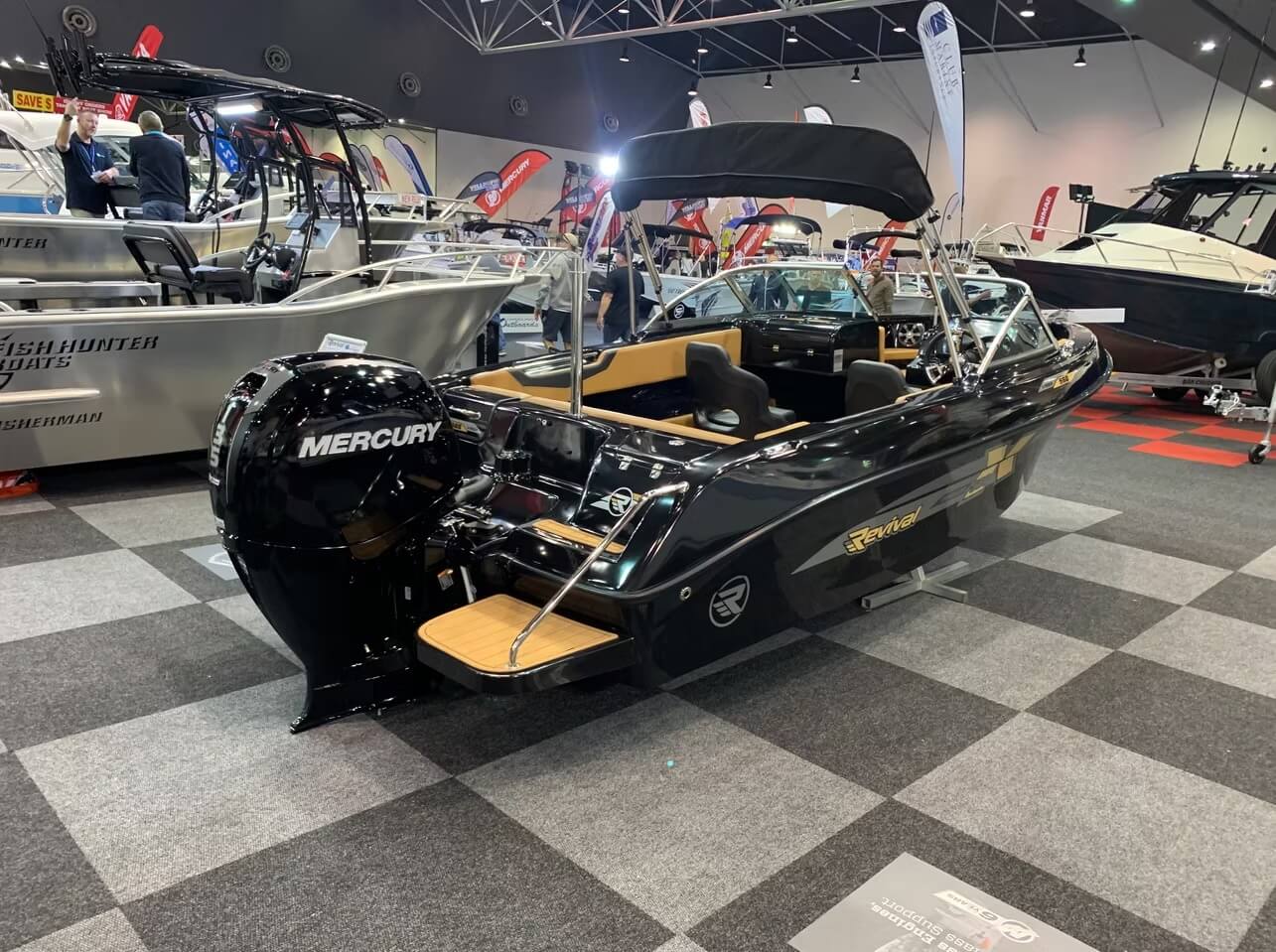

Handcrafted for adventurous families who like to keep their options open, the all new R560 X-Rider boasts a versatile cockpit that no 19-foot sterndrive can match. Designed to unleash the potential of the latest FourStroke or Direct Injection 2-Stroke outboards in the 115 - 150hp range, the R560 X-Rider’s purposeful stance really delivers out on the water where it counts.

Boat Details
  • Make: Revival
  • Name: 560 X-Rider
  • Model Number: 560 X-Rider
  • Year: 2026
  • Length: 5.8 metres
  • Width: 2.37 metres
  • Dry Weight: 1600 kg
  • Hull Material: Fibreglass
  • Hull Type: Mono
  • Passenger Capacity: 7
  • Boat Usage: Fishing
  • Steering: Mechanical Steering
  • Warranty: Contact Dealer
Engine Details
  • Brand: Mercury
  • Horsepower: 150
  • Fuel Capacity: 130
  • Drive Type:
  • Steering:

Hull Length (mm)5800mm - without rear platforms
Hull Beam (mm)2370mm
Transom Deadrise21 degrees
Transom Height (inches)25"/XL

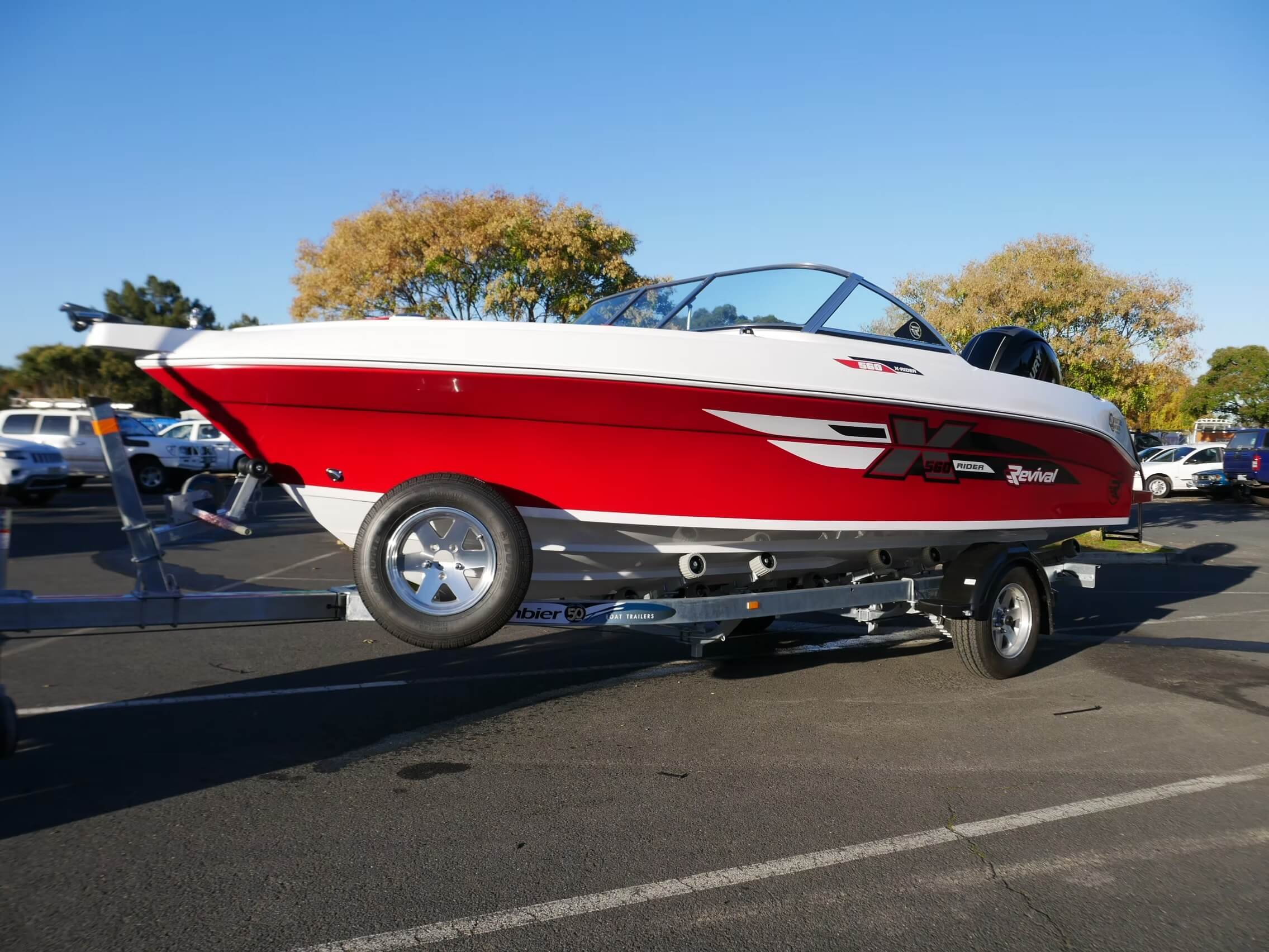

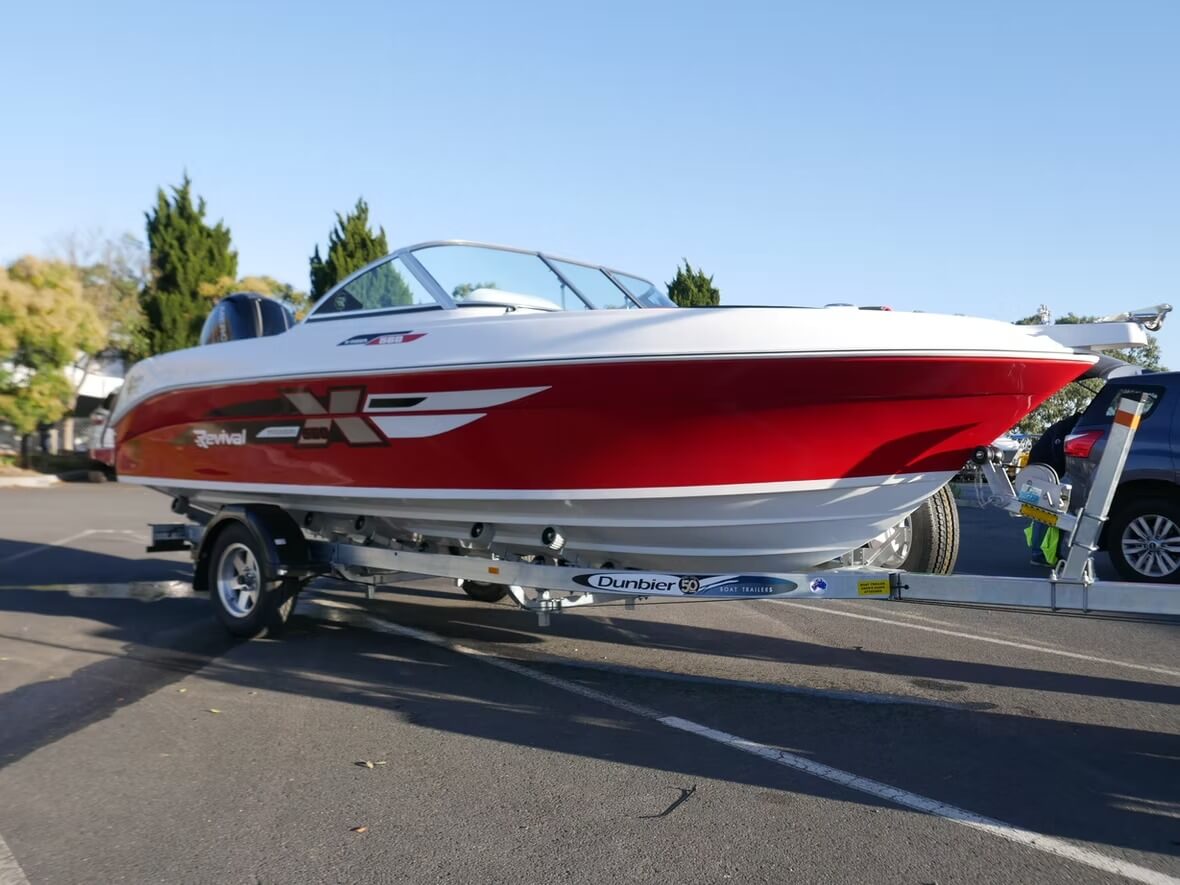

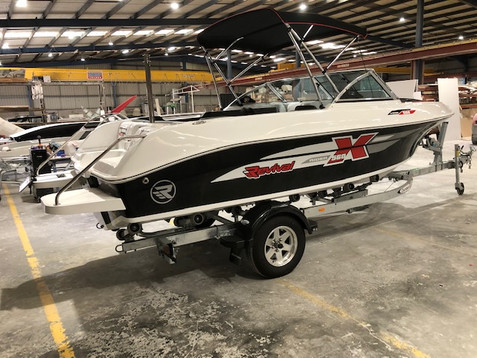

Height on Trailer to top of Windscreen2150mm
Overall Length on Trailer (mm)7000mm
Draft (mm)300mm
Hull Weight (kg) - dry850kg
BMT Weight (kg) - dry1600kg* (Subject to variation)
Fuel Capacity (lt)130lt
Number of People7 Adults
Horsepower115 - 150hp
Max Outboard Weight (kg)250kg
Estimated Cruise Speed (kph) w/Mid-Range hp45kph
Estimated WOT Speed (kph) w/Mid-Range hp70kph (135HP)

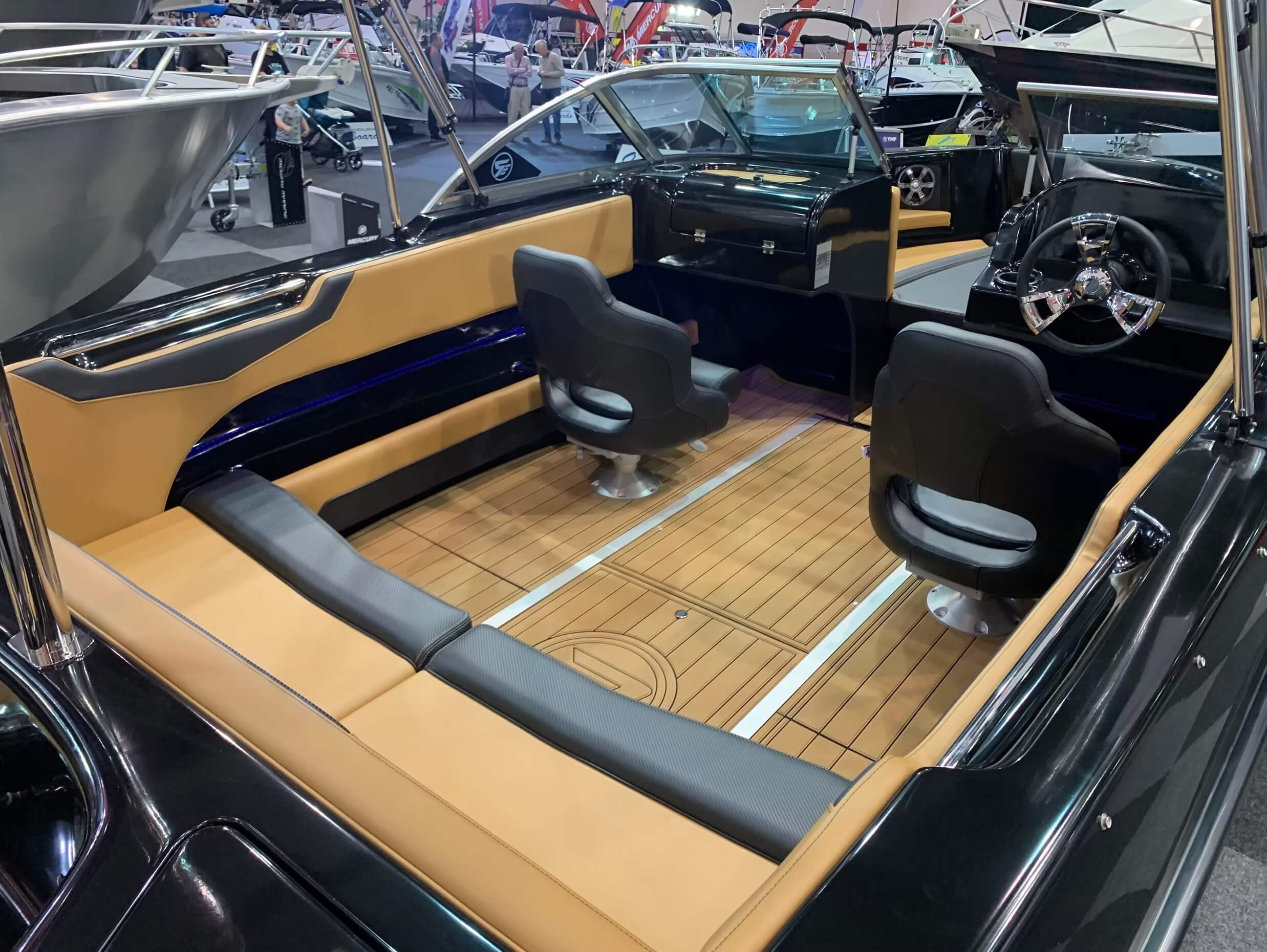

Internal Cockpit Length (mm)1600mm (Aprox)
Internal Cockpit Beam (mm)1950mm (Aprox)
  • Anchor Storage Compartment with Lockable Lids
  • Auto Bilge Pump Hose and Outlet
  • Bow Rider Cushions and Upholstered Back Rests with Upholstered Storage Pockets
  • Bow Roller - Stainless Steel
  • Carpeted Floor
  • Cockpit Side Pockets - Fibreglass Gelcoated White with Vinyl Trim
  • Drink Holders - x 4 (Carbon-Look Plastic)
  • Foam-Filled Hull
  • Glove Box - Large Fully-Carpeted
  • Hand-Laminated Fibreglass Hull and Deck

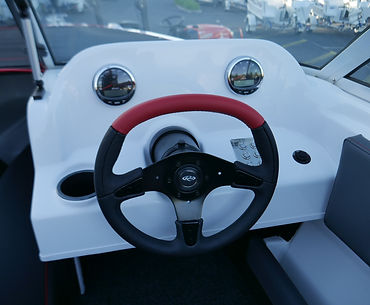

  • Hydraulic Steering with Sports Steering Wheel

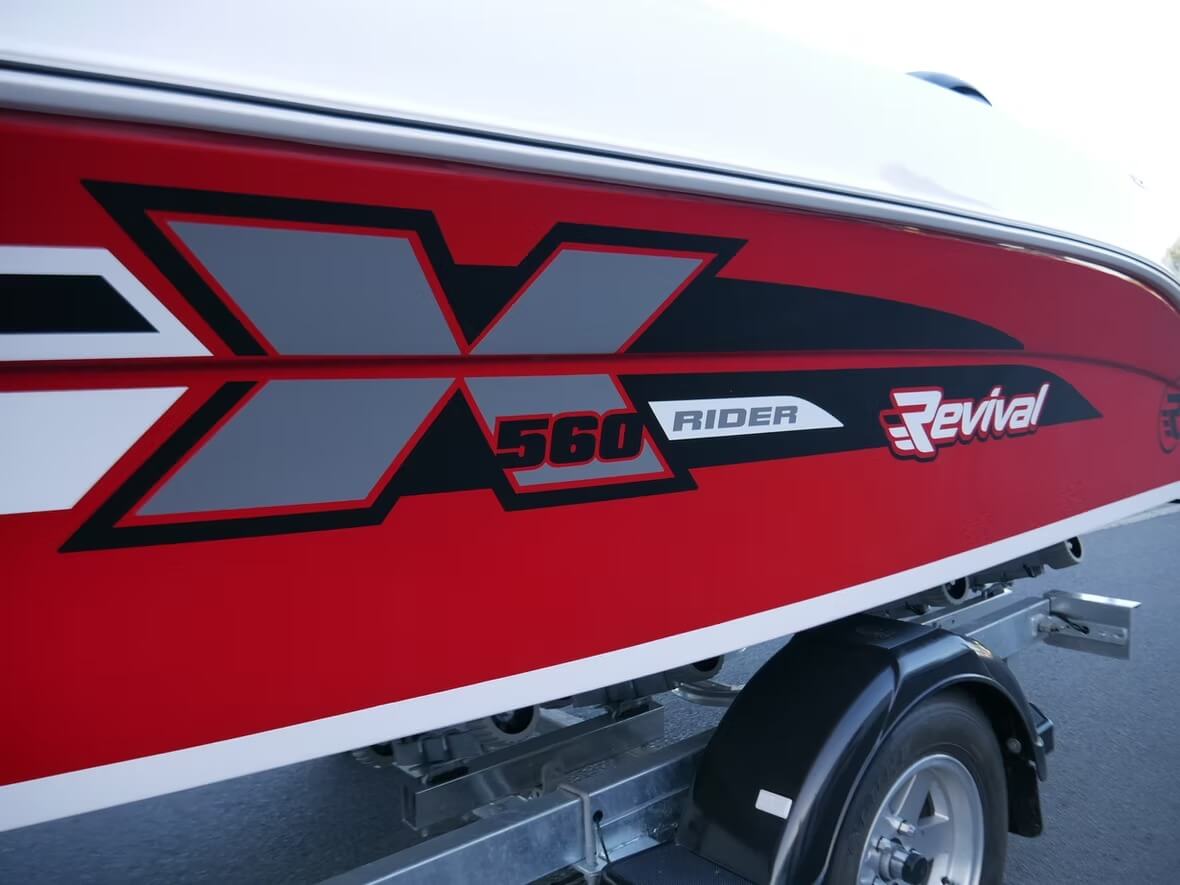

  • Hull and Deck - All White Gelcoat with Edition Specific Stripes and Graphics

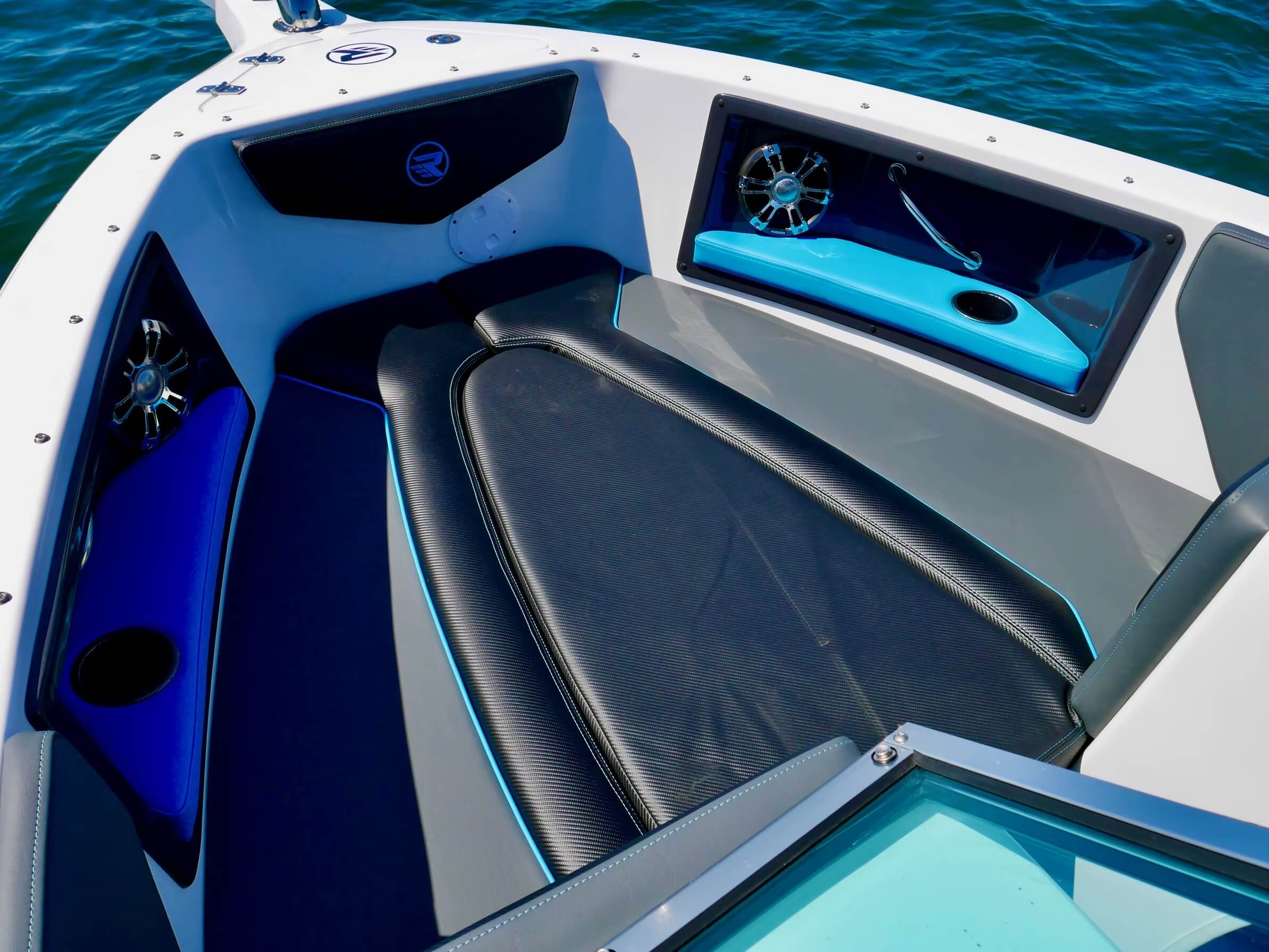

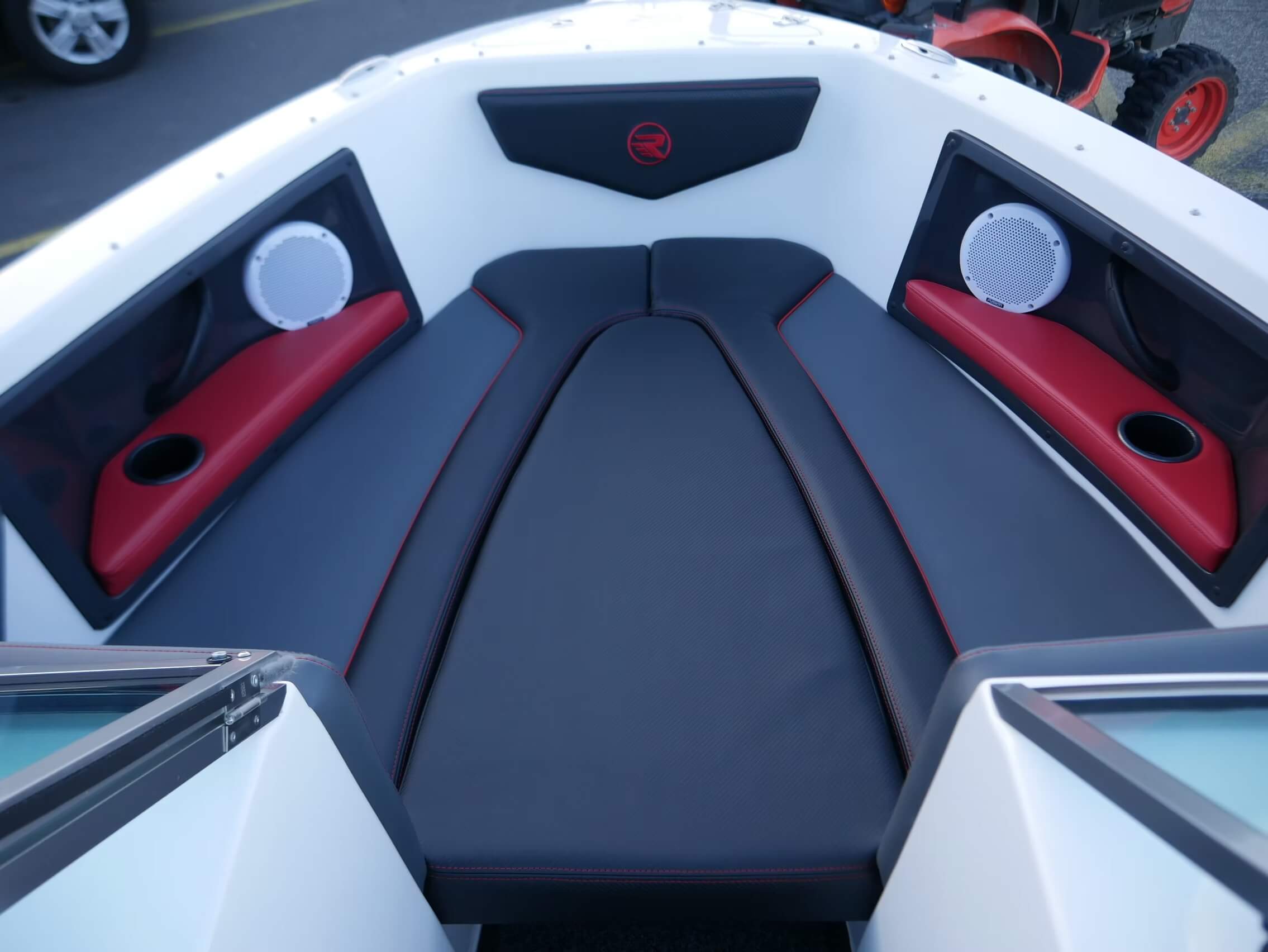

  • Large Bow Seating Area with Upholstered Seats Atop Concealed Storage Bins
  • Navigation Lights
  • Padded X-Rider Backrest Rear of Cockpit with Storage-Style Rear Lounge
  • Padded Side Pockets - Vinyl Detailing
  • Panic Rail for Passenger - Stainless Steel
  • Rear Starboard-Side Storage Locker/Bait Well that Drains Overboard - Not Plumbed
  • Rear Pop-Up Cleats - Stainless Steel (2)
  • Rear Door/Step Through Transom (Port)
  • Rear Tow Eyes - Stainless Steel (2)
  • Swivel Bucket Seats on Fixed Pedestals with Seat Slides and Flip Up Bolsters
  • Twin-Core Tinned Wiring to Dash
  • Underfloor Fuel Tank 130L with Breathers that Drain to Engine Well, Fuel Sender,
  • Filler Cap in Engine Well
  • Underfloor Kill Tank/ Storage Locker -  (Aprox 150lt)
  • Water-Resistant Switch Panel
